Basic Info.
Model NO.
pl130
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Semiconductor Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Laser Power
20W /30W/ 50W(Optional)
Laser Source
Raycus
Marking Speed
7000mm/S
Marking Depth
20 W 0.5 mm or Less 30 W 0.7 mm or Less
Marking Area
120mm*120mm 150mm*150mm 175mm*175mm
Repeat Precision
+/-0.002mm
Operating System
Win98 / Win2000 Winxp/ Win 7
Service Life
100000 Hours
Operating Environment
Temperature: - 20~45, Relative Humidity 80%
Place of Origin
China
Transport Package
Carton and Wooden Pcaking
Specification
80X60X50 cm
Trademark
Faith
Origin
China
HS Code
8456100090
Production Capacity
50000/Year
Product Description
Faith 20/30/50/80W/100W 3D Color CO2 UV Fiber Production Line Galvo Fiber Laser Printer Marking CNC Engraving Machine for PVC PE Pipe
PL130 Laser Marking Machine Parameter
| Product Name | Static fiber desktop laser engraving marking machine |
| Laser Power | 20W/30W/50W |
| Laser Wavelenghth | 1060nm |
| Beam Quality | <2(M2) |
| Laser Type | Pulse or Continuity |
| Cooling System | Air Cooling |
| Power Supply | 200V,50Hz |
| Operating Environment | Temperature:-20ºC-45ºC relative humidity 80% |
| Marking Depth | 10w 0.3mm or less 20w 0.5mm or less 30w 0.7mm |
| Marking Speed | 7000 mm/s or less |
| Marking Range | Standard plane 110mm*110mm can be customized |
| Minimum of characters | 0.15mm |
| Minimumline width | 0.012mm |
| Repeat precision | +/- 0.002 |
| Operating system | Win 98/ Win 2000 / Win XP/ Win 7 |
| Graphiceditor | Software provide self editor,computer input,plane circumference,fan-shape distribution and end. |
| Graphic conversion | Software to provide Auto CAD Corel DrawCAXA graphic file conversio |
Application of PL130 laser marking machine
1. It can process various metal and non-metal materials. Especially suitable for high hardness, high melting point and brittleness
The advantages of material marking are more obvious.
2. It belongs to non-contact processing, no damage to the product, no tool wear, and good marking quality.
3. The laser beam is thin, the processing material consumption is small, and the processing heat-affected area is small.
4. High processing efficiency, computer control, easy to realize automation
The advantages of material marking are more obvious.
2. It belongs to non-contact processing, no damage to the product, no tool wear, and good marking quality.
3. The laser beam is thin, the processing material consumption is small, and the processing heat-affected area is small.
4. High processing efficiency, computer control, easy to realize automation
We have a variety of FIBER CO2 UV laser marking machines of different sizes, you can find any type you want here to meet your needs.
Meet the high-speed production requirements of automobile, electronics, medical machinery processing, etc
Genuine software features powerful
High-precision correction/support system/support language
Reducing the time and cost of installation and programming
Adjustable manual Lifting function
According to the size of the object to adjust the focus for engraving
Feature of pl130 fiber laser marking machine
The main functions of pl130 lazer machine
1) This PL130 lazer marking machine can be equipped with various power laser light sources, no matter which industry you belong to, we provide the most suitable fiber laser marking machine;
2) The PL130 lazer marking speed is fast and the efficiency is high. At the same time, the output of the workpiece is obviously increased, which speeds up the user's return on investment;
3) The PL130 lazer machine has a long service life, stable laser output power, high reliability, and can work continuously under harsh working conditions. In principle, the service life is more than 100,000 hours, which is basically maintenance-free, which is more than 15 times that of semiconductors
4) Small size, low energy consumption, convenient operation, saving production space
Genuine software features powerful
Reducing the time and cost of installation and programming
Packing List
| Name of a single accessory attached | Quantity |
| Optical fiber laser machine cabinet | 1 |
| Laser | 1 |

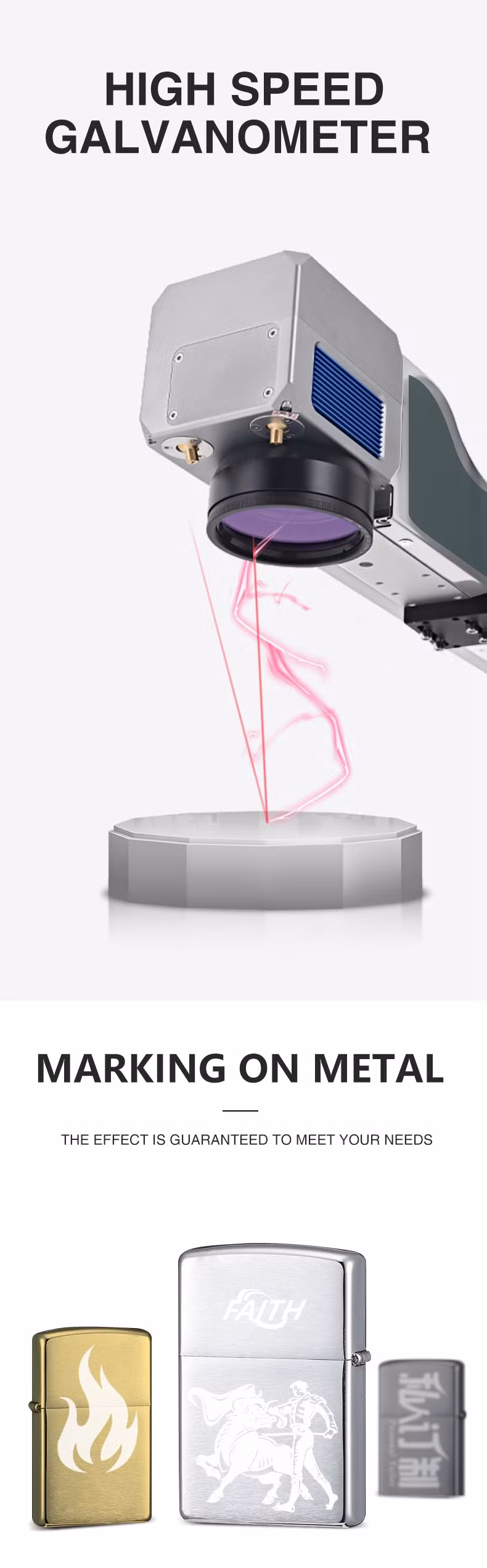

| Scanning galvanometer | 1 |
| General control power box | 1 |
| 3D lifting bracket | 1 |
| 15 inch LCD display | 1 |
| Professional date line | 1 |
| Foot swich | 1 |
Please contact me if you are interested!
FAQ
1.What are the primary products of your company?
Our primary products include laser marking machine, inkjet printer machine,paging machine.
2.Where is your laser marking machine applied to?
Our laser equipment is applied to metal, non-metal, textiles, leather, shoes, advertisement, gifts, electronic components, stamp,etc
3.Which countries are your laser machinery sold to?
Our products are widely exported to Poland, Russia, Ukraine, Korea, Thailand, Egypt, Brazil, Australia, Singapore, Saudi Arabia,
Turkey, India, Italy, and other countries.
4.How long is the delivery time?
The products will be delivered to you within one week after the order is confirmed.
5.What certificate has your company got?
All of our product with CE, ISO
